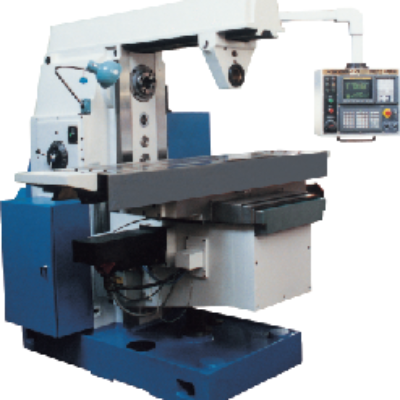

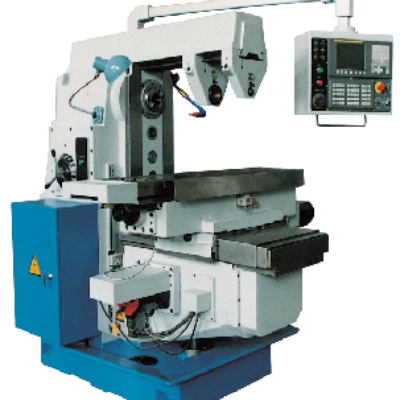

CNC Knee-Type Milling Machine – a versatile CNC machine tool designed for precision milling of small to medium-sized workpieces. Featuring a knee-type structure, it provides flexible vertical and horizontal movement, making it ideal for contouring, slotting, drilling, and surface machining. With advanced CNC control and robust construction, it ensures accuracy, efficiency, and reliability for toolrooms, workshops, and manufacturing industries.
Technical Specifications
| Item | Unit | XK6032 | XK6132 | XK6040 | XK5032 | XK5032B | XK5042 | XK5040A |
| Table size (L×W) | mm | 320×1320 | 320×1320 | 400×1600 | 320×1320 | 320×1320 | 420×1300 | 400×1600 |
| Max. table loading capacity | kg | 300 | 300 | 500 | 300 | 300 | 300 | 500 |
| Table travel (Axes X, Y, and Z) | mm | 800/375/300 | 800/375/300 | 900/400/375 | 800/300/400 | 800/350/140 | 790/430/140 | 900/375/400 |
| Spindle Taper | ISO50 | ISO50 | ISO50 | ISO50 | ISO40 | ISO40 | ISO50 | |
| Spindle speed | rpm | 30-1500 | 30-1500 | 30-1500 | 30-1500 | 60-3000 | 60-3000 | 30-1500 |
| Feeding speed of Axes X and Y | mm/min | 10-3000 | 10-3000 | 10-3000 | 10-3000 | 10-3000 | 10-3000 | 10-3000 |
| Feeding speed of Axis Z | mm/min | 10-1500 | 10-1500 | 10-1500 | 10-1500 | 10-3000 | 10-3000 | 10-1500 |
