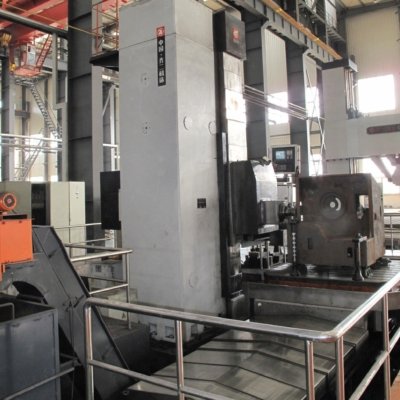

CNC Planer Type Milling and Boring Machine – a heavy-duty machining solution for large workpieces, combining milling and boring functions with high precision. Ideal for industries requiring stability, accuracy, and efficiency in complex machining tasks.
Technical Specifications
| Item | Unit | TK6516 | TH6515 | TH6513 |
| Spindle Taper | ISO 50 | ISO 50 | ISO 50 | |
| Spindle Speed | rpm | 10~1500 | 10~2000 | 6 ~1500 |
| Max. Torque of Spindle | N.m | 3800 | 4500 | 3000 |
| Spindle Diameter | mm | 160 | 150 | 130 |
| Milling Spindle Diameter | 254 | 280 | 221.44 | |
| Ram Section | 440×460 | 440×480 | 360×400 | |
| Table Travel (Axis X) | 2500 | 3500 | 3500 | |
| Headstock Travel (Axis Y) | 1500 | 2500 | 2000 | |
| Axial Travel of Main spindle (Axis Z) | 900 | 1000 | 800 | |
| Ram Travel (Axis W) | 900 | 900 | 800 |
