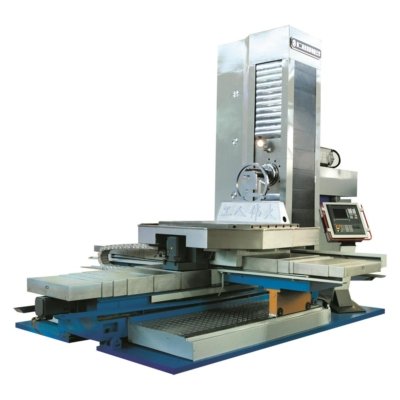

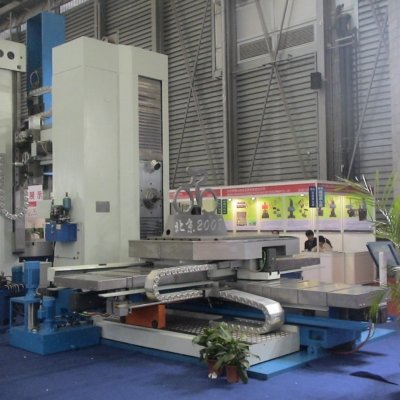

CNC Table Type Horizontal Boring and Milling Machine – a versatile machine designed for precise boring, milling, and drilling of large and heavy workpieces. Equipped with advanced CNC control, it ensures high accuracy, efficiency, and flexibility for a wide range of industrial applications.
Technical Specifications
| Item | Unit | TK6111 | TK6113 | TK6115 |
| Boring Spindle Diameter | mm | 110 | 130 | 150 |
| Boring Spindle Travel(Axis W) | mm | 700 | 800 | 800 |
| Main Spindle Speed | rpm | 5~3000 | 5~2000 | 5~2000 |
| Transverse Travel of the Table (Axis X) | mm | 2000 | 2500 | 3000 |
| Longitudinal Travel of the Table(Axis Z) | mm | 1600 | 1800 | 1600 |
| Vertical Travel of the Milling Head (Axis Y) | mm | 1600 | 2000 | 2300 |
| Table Rotating Speed | r/min | 0.03-1.2 | 0.03- 2 | 0.03-1 |
| Max. Load at the Center of Table | kg | 6000 | 10000 | 10000 |
