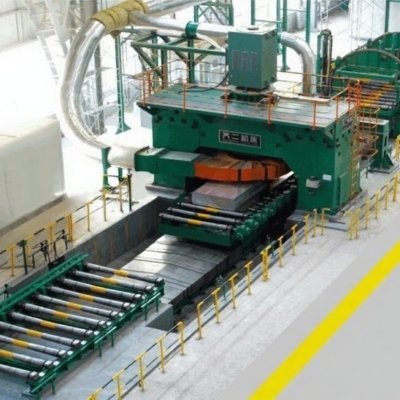

Multi-Function Ingot Milling/Scalping Machine – a high-performance solution for efficient ingot surface preparation. Combines milling and scalping operations to remove surface defects and ensure high-quality aluminum, copper, and steel ingots for further processing.
Technical Specifications
| Item | Specifications |
| Max. Dimension of the Ingot (L*W*H) | 9000×2200×850（mm） |
| Table Travel (Axis X) | 12000-20000（mm） |
| Table Feed Rate | 200-6000（mm/min） |
| Table Loading Capacity | 30t |
| Table Rapid Travel | 20000(mm/min) |
| Table Feeding Motor（SIEMENS） | 125Nm/2000rpm |
| Ram Travel | 350-550mm |
